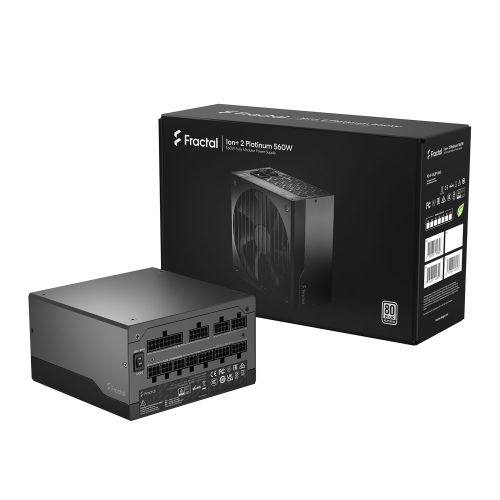

Fractal Design 560W ION+ 2 PSU

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality. It ships with two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards. A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and the custom-tailored 140 mm fan with FDB bearings stays practically whisper-quiet even under heavy load. Revolutionary UltraFlex™ cable with its ultra-high strand count wire and special insulation bends and twists effortlessly to make installation and cable-routing a breeze. Ion+ 2 Platinum is available in 560, 660, 760 and 860 watt capacities, all with 80PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for peace of mind.

80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
Great electrical output quality with tight voltage regulation and low ripple and noise
Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
Equipped with a large high-performance Fractal Design Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing
Premium Japanese 105°C capacitors provide maximum reliability and durability
Premium storage bags for cables and PSU

Product Description	Fractal Design 560W ION+ 2 PSU, Fully Modular, Fluid Dynamic Fan, 80+ Platinum, UltraFlex Wires, Whisper-quiet Mode
Form Factor	ATX
Series	Fractal Design ION+ 2
Modular	Fully Modular
Compatability	ATX 2.52
Wattage	560 W
Connectors	1 x ATX 24-pin 2 x ATX12V 4+4 pin / EPS12V 8-pin 4 x PCIe 6+2 pin 6 x SATA 4 x Peripheral
Rail Design	-
AC Input	100-240V AC
PFC	-
Fan Type	Fractal Dynamic GP-14 140 mm FDB bearing fan
Fan Bearing	Fluid / Hydraulic Bearing
80+ Cert	80+ Platinum
Efficiency	ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
Protection	Over voltage Under voltage Overpower Short circuit Over current Over temperature
Package Weight	2.91
Weight/Dimensions	2.24kg 150 x 150 x 86 mm
Warranty	10 Years
