Asus TUF GAMING RX7700 XT OC - Alpha Components

Asus TUF GAMING RX7700 XT OC, PCIe4, 12GB DDR6, HDMI, 3 DP, RGB, Overclocked

Asus TUF GAMING RX7700 XT OC, PCIe4, 12GB DDR6, HDMI, 3 DP, RGB, Overclocked

Out of Stock

Stock Code:
  AL-C-GRAPHICS-ASUS-TUFGAMINGRX7700XTOC

Mfr:
  Asus

Mfr Code:
  90YV0JK0-M0NA00

Mfr Link:
   Asus
EAN:
  4711387309933

Quick Find:
  12008
£0

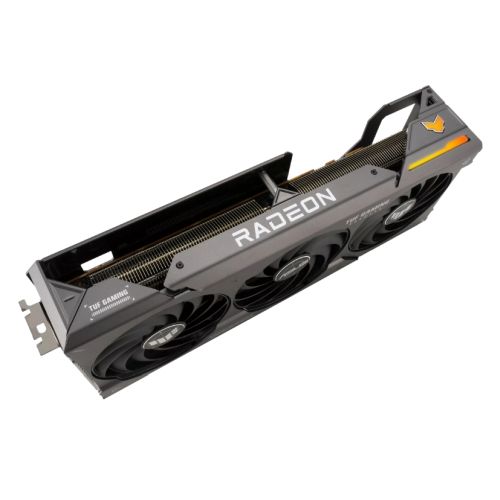

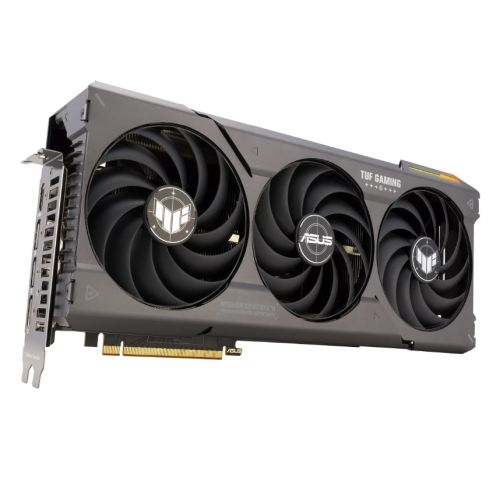

  • ASUS TUF Gaming Radeon™ RX 7700 XT OC Edition 12GB GDDR6 optimized inside and out for lower temps and durability.

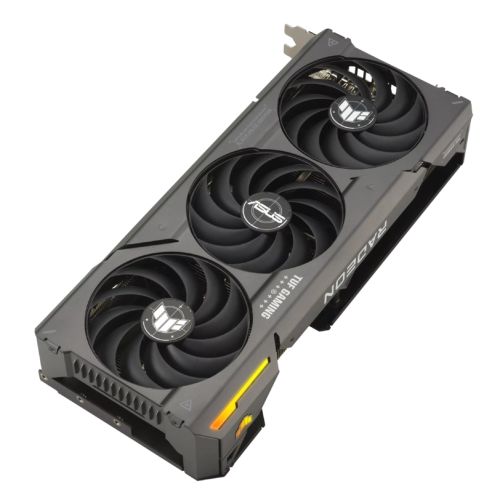

  • Axial-tech fans scaled up to deliver 24% more airflow
  • Dual ball fan bearings last up to twice as long as conventional designs
  • Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
  • Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
  • Auto-Extreme precision automated manufacturing for higher reliability
  • GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

  • Flyin’ TUF The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond,
    and backed with an arsenal of rugged reinforcements to cover your six.
    Lock, load, and dominate with the TUF Gaming Radeon™ RX 7700 XT.

  • Well-maintained Formation The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

  • Air Superiority Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 24% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

  • Resilient Squadron A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

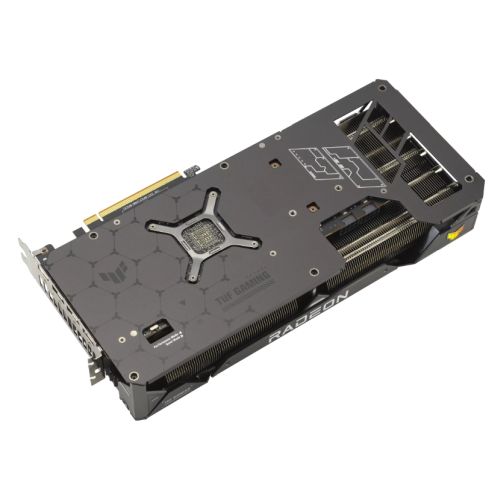

  • Suit Up An aluminum shroud and backplate prevent PCB flex and feature large vents to further increase heat dissipation.

  • Reliability Boost Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Product Description Asus TUF GAMING RX7700 XT OC, PCIe4, 12GB DDR6, HDMI, 3 DP, RGB, Overclocked
Chipset Manufacturer AMD
Interface PCI Express 4.0
Graphics Chip AMD RX 7700 XT
Memory Size 12GB
Memory Type DDR6
Memory Interface 192-bit
Core Clock OC mode: Up to TBD MHz (Boost Clock), Up to TBD MHz (Game Clock), Default mode: Up to TBD MHz (Boost Clock), Up to TBD MHz (Game Clock)
Memory Clock 18 Gbps
CUDA Cores / Stream Processors 3456 Stream Processors

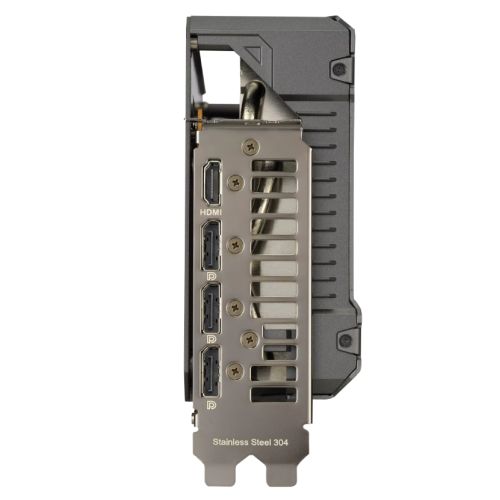

Outputs 1 x HDMI, 3 x DisplayPort
HDCP Support Yes
Resolution Digital Max Resolution: 7680 x 4320
Direct X Support -
Multi GPU Support None
Max Display Support 4
Cooling Axial-tech fans, Dual ball fan bearings, Vented Exoskeleton, Massive Heatsinks
Psu Requirements 750W or greater recommended
Connectors Required 2 x 8-pin PCIe Power
Software ASUS GPU Tweak III & Drivers
Slot Size 2.96 Slot
Weight & Dimensions 319.8 x 150.9 x 59.2 mm
Package Weight 2.4
Warranty 3 Years
