Asus TUF GAMING RTX4070 OC - Alpha Components

Asus TUF GAMING RTX4070 OC, PCIe4, 12GB DDR6X, HDMI, 3 DP, 2580MHz Clock, RGB Lighting, Overclocked

Asus TUF GAMING RTX4070 OC, PCIe4, 12GB DDR6X, HDMI, 3 DP, 2580MHz Clock, RGB Lighting, Overclocked

Out of Stock

Stock Code:
  AL-C-GRAPHICS-ASUS-TUFGAMINGRX4070OC

Mfr:
  Asus

Mfr Code:
  90YV0IZ0-M0NA00

Mfr Link:
   Asus
EAN:
  4711387128176

Quick Find:
  12012
£0
  • ASUS TUF Gaming GeForce RTX 4070 12GB GDDR6X OC Edition with DLSS 3, lower temps, and enhanced durability

  • Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
  • 4th Generation Tensor Cores - Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores - Up to 2x ray tracing performance
  • OC mode - 2580 MHz (OC mode)/ 2550 MHz (Default mode)
  • Axial-tech fans scaled up for 21% more airflow
  • Dual ball fan bearings last up to twice as long as conventional designs

  • Armed For Flow NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX4070.

  • Air Superiority Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

  • Well-maintained Formation The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

  • Resilient Squadron A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

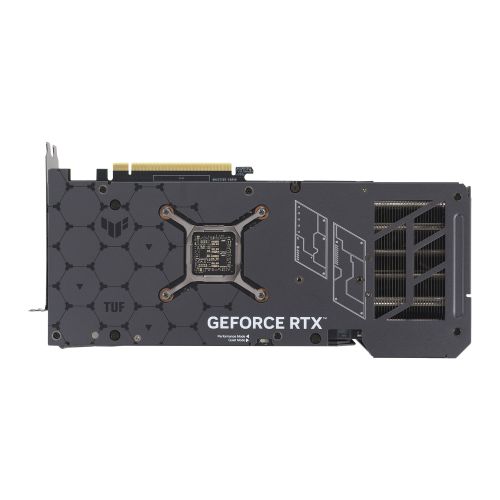

  • Stay Frosty The backplate is made of sturdy aluminium to brace the PCB and sink heat away from onboard components.

  • Reliability Boost Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Product Description Asus TUF GAMING RTX4070 OC, PCIe4, 12GB DDR6X, HDMI, 3 DP, 2580MHz Clock, RGB Lighting, Overclocked
Chipset Manufacturer Nvidia
Interface PCI Express 4.0
Graphics Chip Nvidia RTX 4070
Memory Size 12GB
Memory Type DDR6X
Memory Interface 192-bit
Core Clock OC mode : 2580 MHz, Default mode : 2550 MHz(Boost)
Memory Clock 21 Gbps
CUDA Cores / Stream Processors 5888 CUDA Cores

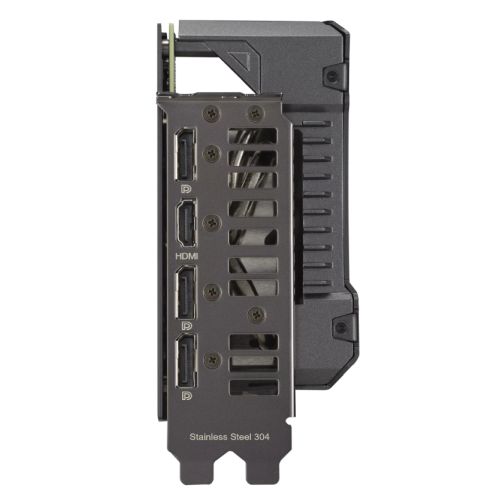

Outputs 1 x HDMI 2.1, 3 x DisplayPort 1.4a
HDCP Support Yes
Resolution Digital Max Resolution: 7680 x 4320
Direct X Support -
Multi GPU Support -
Max Display Support 4
Cooling Axial-tech Fans, Vented Exoskeleton, Massive Heatsinks
Psu Requirements 650W or greater recommended
Connectors Required 1 x 8-pin PCIe power
Software ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver
Slot Size 3.15 Slot
Weight & Dimensions 301 x 139 x 63 mm
Package Weight 2.2
Warranty 3 Years
