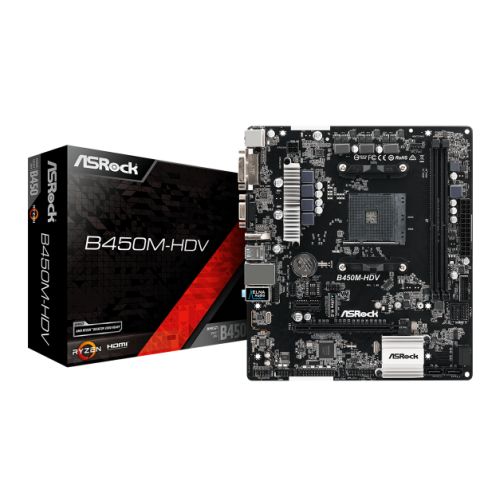

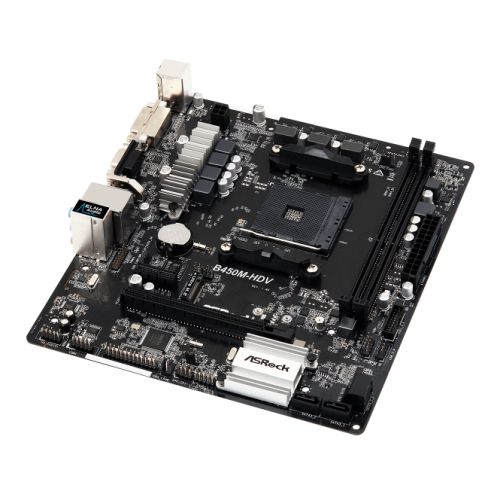

Asrock B450M-HDV R.40 - Alpha Components

AMD StoreMI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Triple Monitor Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card. *Supported with processors with integrated graphics only.

4K x 2K Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format. *Supported with A-Series APUs only.

Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Product Description	Asrock B450M-HDV R.40, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2
Motherboard Type	Desktop
Form Factor	MicroATX
Socket	AMD AM4
Chipset	AMD B450
CPU Support	See AMD website
RAM Technology	DDR4 (Dual Channel)
RAM Slots	2 x Dimm
RAM Speed	3200+(OC)/2933/2667/2400/2133 MHz
Max RAM	32GB
Graphics	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Graphics Ports	1 x VGA1 x DVI-D, 1 x HDMI
Multi GPU Support	-
PCI/PCI Express	Ryzen CPUs (Summit & Pinnacle Ridge):1 x PCIe 3.0 x16Ryzen CPUs (Raven Ridge):1 x PCIe 3.0 x161 x PCIe 2.0 x1
Storage	4 x SATA III 1 x Ultra M.2 2242/2260/2280 - SATA & PCIe
RAID	RAID 0, 1, 10
Wireless	-
LAN	GB LAN
Audio	7.1 CH HD Audio (Realtek ALC887 Audio Codec)
USB ports Supported	6 x USB 3.1 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board)

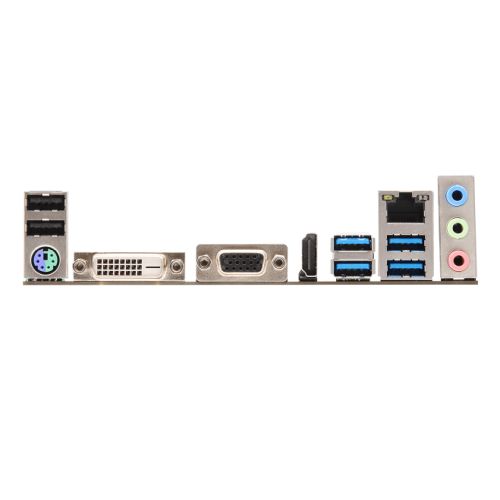

Back I/O Panel	1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x DVI-D 1 x HDMI 2 x USB 2.0 4 x USB 3.1 Gen1
Internal I/O Panel	1 x Print Port 1 x COM Port 1 x TPM 1 x Chassis Intrusion and Speaker 1 x CPU Fan 1 x Chassis Fan 1 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 4 pin 12V 1 x Front Audio
Accessories	Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket
Windows 11 Ready	Yes
Other Information	5th gen Ryzen CPUs will require a BIOS update to work
Package Type	Retail
Weight & Dimensions	-
Package Weight	0.8
Warranty	3 Year Replacement Warranty
