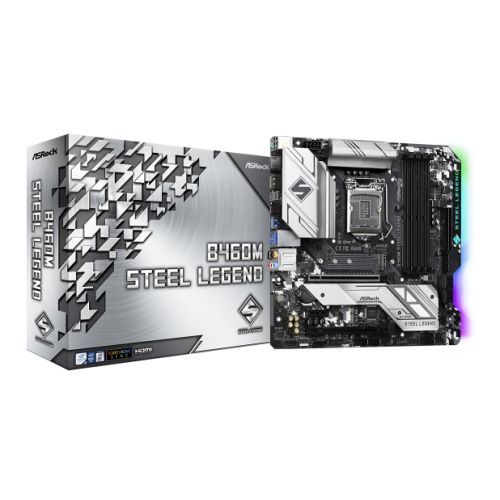

Asrock B460M STEEL LEGEND - Alpha Components

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Processor - Supports 10th Gen Intel® Core™ Processors (Socket 1200)
USB - 7 USB 3.2 Gen1 (2 Front, 4 Rear, 1 Rear Type-C)
PCI - 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
Graphics #NAME?
Storage - 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)<br>

Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Base Frequency Boost (BFB) Technology Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

Rule your own Lighting Way - Polychrome RGB SRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Dragon 2.5 Gb/s LA The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

PCI-E Steel Slot The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Product Description	Asrock B460M STEEL LEGEND, Intel B460, 1200, Micro ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB Lighting, M.2
Motherboard Type	Desktop
Form Factor	MicroATX
Socket	Intel 1200 - Comet Lake
Chipset	Intel B460
CPU Support	See Intel website
RAM Technology	DDR4 (Dual Channel)
RAM Slots	4 x Dimm
RAM Speed	2933 / 2800 / 2666 / 2400 / 2133 MHz
Max RAM	128GB
Graphics	Supports Intel HD Graphics
Graphics Ports	1 x HDMI1 x DisplayPort
Multi GPU Support	-
PCI/PCI Express	2 x PCIe 3.0 x161 x PCIe 3.0 x1
Storage	6 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2260/2280) - SATA & PCIe
RAID	RAID 0, 1, 5, 10
Wireless	-
LAN	2.5GB LAN
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
USB ports Supported	1 x USB 3.2 Gen1 Type-C (at back) 6 x USB 3.2 Gen1 (4 at back, 4 at mid-board), 6 x USB 2.0 (2 at back, 4 at mid-board)

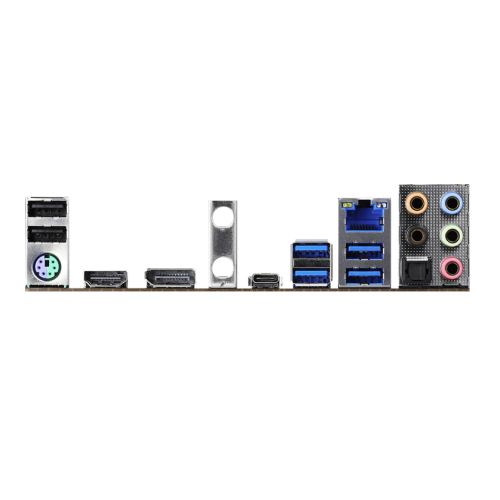

Back I/O Panel	1 x Antenna Bracket 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 1 x RJ-45 LAN 1 x PS/2 Mouse/Keyboard
Internal I/O Panel	1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x RGB LED 2 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 4 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x Thunderbolt AIC 1 x USB 3.2 Gen1
Accessories	2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
Windows 11 Ready	Yes
Other Information	-
Package Type	Retail
Weight & Dimensions	-
Package Weight	1.66
Warranty	3 Year Replacement Warranty
