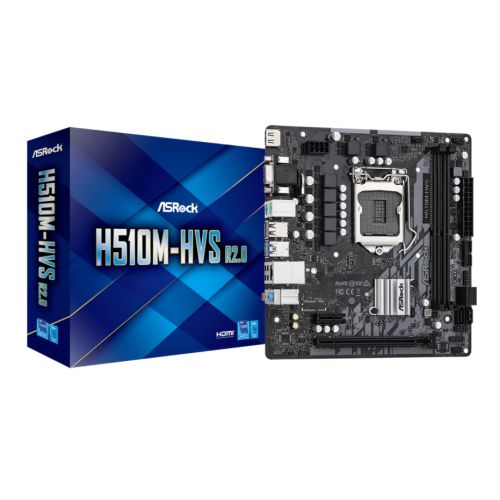

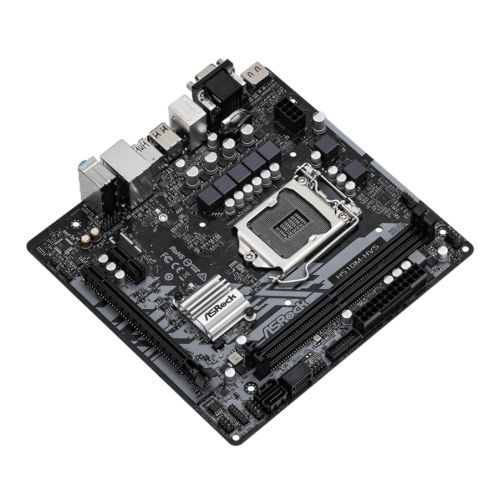

Asrock H510M-HVS R2.0 - Alpha Components

Processor - Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
Storage - 4 SATA3
USB - 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
Audio - 7.1 CH HD Audio (Realtek ALC887/ 897 Audio Codec)
Memory - Supports DDR4 3200MHz*<br>

Clever Access Memory Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Dual Graphics Outputs Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Product Description	Asrock H510M-HVS R2.0, Intel H510, 1200, Micro ATX, 2 DDR4, VGA, HDMI
Motherboard Type	Desktop
Form Factor	MicroATX
Socket	Intel 1200 - Comet Lake
Chipset	Intel H510
CPU Support	See Intel website
RAM Technology	DDR4 (Dual Channel)
RAM Slots	2 x Dimm
RAM Speed	3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Max RAM	64GB
Graphics	Integrated Graphics**Graphics specifications may vary between CPU types
Graphics Ports	1 x VGA1 x HDMI
Multi GPU Support	-
PCI/PCI Express	1 x PCIe 4.0 x161 x PCIe 3.0 x1
Storage	4 x SATA III
RAID	-
Wireless	-
LAN	GB LAN
Audio	7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
USB ports Supported	4 x USB 3.2 Gen1 (2 at back, 2 at mid-board) 6 x USB 2.0 (4 at back, 2 at mid-board)

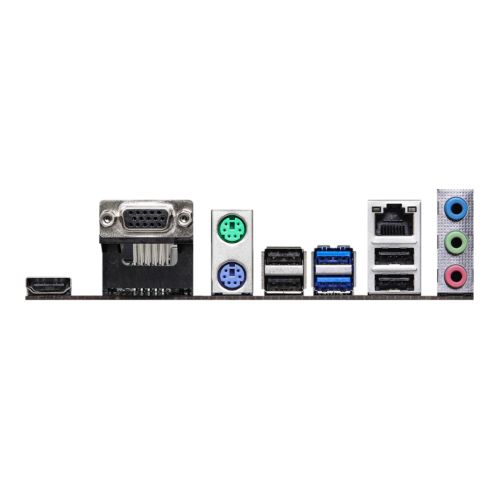

Back I/O Panel	1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x D-Sub 1 x HDMI 2 x USB 3.2 Gen1 Type-A 4 x USB 2.0
Internal I/O Panel	1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x CPU Fan (4-pin) 1 x Chassis/Water Pump Fan 1 x 24 pin ATX Power 1 x 8 pin 12V Power 1 x Front Audio 1 x USB 2.0 1 x USB 3.2 Gen1 Type-A
Accessories	Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables
Windows 11 Ready	Yes
Other Information	-
Package Type	Retail
Weight & Dimensions	-
Package Weight	0.77
Warranty	2 Year Replacement Warranty
