Asus PRIME A620M-K - Alpha Components

AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

AMD AM5 Socket Ready for AMD Ryzen™ 7000 Series Desktop Processors
Ultrafast Connectivity PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
Comprehensive Cooling PCH heatsink and Fan Xpert
Aura Sync RGB Lighting Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-way AI Noise Cancelation Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Prime ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Flexibility Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Cooling PRIME A620M-K is engineered with an array of hybrid fan headers and two ounce copper PCB design to ensure your rig stays cool and stable under intense workloads.

Performance The PRIME A620 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS A620 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Customisation The PRIME A620 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Product Description	Asus PRIME A620M-K, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, GB LAN, PCIe4, 1x M.2
Motherboard Type	Desktop
Form Factor	MicroATX
Socket	AMD AM5
Chipset	AMD A620
CPU Support	See AMD website
RAM Technology	DDR5 (Dual Channel), Non-ECC, Un-buffered Memory
RAM Slots	2 x Dimm
RAM Speed	Up to 6400+(OC)
Max RAM	64GB
Graphics	Integrated Graphics Processor*Graphics specifications may vary between CPU types
Graphics Ports	1 x VGA, 1x HDMI
Multi GPU Support	-
PCI/PCI Express	1 x PCIe 4.0 x16 (supports x16 mode), 1 x PCIe 3.0 x1
Storage	4 x SATA III 1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Wireless	-
LAN	GB LAN
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
USB ports Supported	Rear: 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front: 1 x USB 3.2 Gen1 header - supports 2 USB 3.2 Gen1 ports, 2 x USB 2.0 headers - supports 4 USB 2.0 ports

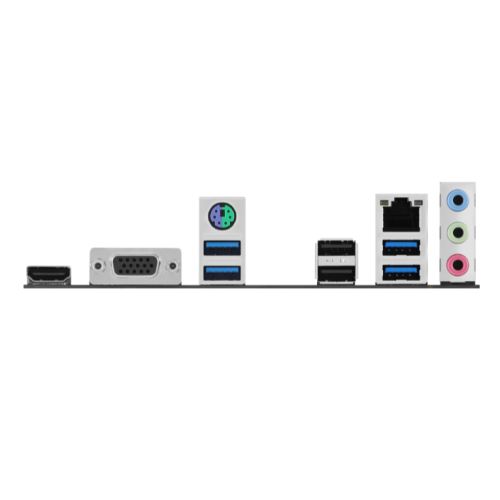

Back I/O Panel	4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x VGA 1 x HDMI 1 x Realtek 1Gb Ethernet 3 x Audio jacks
Internal I/O Panel	1 x 4-pin CPU Fan 1 x 4-pin Chassis Fan 1 x 24-pin Main 1 x 8-pin +12V 1 x M.2 (Key M) 4 x SATA 6Gb/s 1 x USB 3.2 Gen1 2 x USB 2.0 2 x Addressable Gen2 1 x Aura RGB
Accessories	2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x Screw package for M.2 SSD, 1 x User guide
Windows 11 Ready	Yes
Other Information	For 3rd & 5th gen Ryzen CPUs only Ryzen 5600G & 5700G CPUs may require a BIOS update
Package Type	Retail
Weight & Dimensions	-
Package Weight	1.1
Warranty	3 Years
