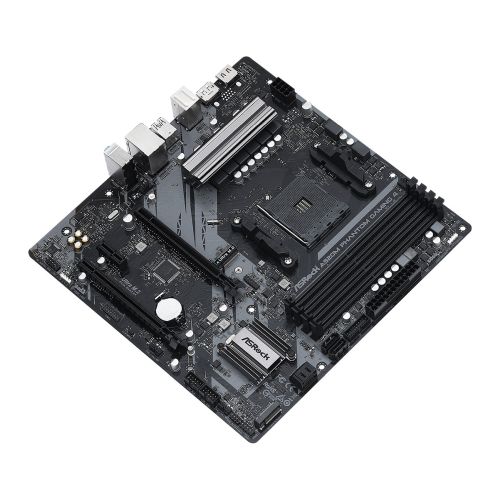

Asrock A520M PHANTOM GAMING 4

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

Processor - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
Power - 8 Power Phase Design with Digi Power
Memory - Supports DDR4 4733+ (OC)
Graphics - HDMI, DisplayPort
LAN #NAME?
Audio - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

AMD SMART ACCESS MEMORY Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual M.2 For SSD One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.

2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

Dual Graphics Outputs Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

AMD StoreMI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Product Description	Asrock A520M PHANTOM GAMING 4, AMD A520, AM4, Micro ATX, 4 DDR4, HDMI, DP, 2x M.2
Motherboard Type	Desktop
Form Factor	Micro ATX
Socket	AMD AM4
Chipset	AMD A520
CPU Support	See AMD website
RAM Technology	DDR4 (Dual Channel)
RAM Slots	4 x Dimm
RAM Speed	Up to 4533+(OC)
Max RAM	128GB
Graphics	Integrated Graphics Processor* Graphics specifications may vary between CPU types
Graphics Ports	1 x HDMI, 1 x DisplayPort 1.4
Multi GPU Support	-
PCI/PCI Express	2 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Storage	4 x SATA III, 1 x M.2 (2280) - PCIe, 1 x M.2 (2280) - SATA & PCIe
RAID	RAID 0, 1, 10
Wireless	-
LAN	GB LAN
Audio	7.1 CH HD Audio (Realtek 887/897 Audio Codec)
USB ports Supported	6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board)

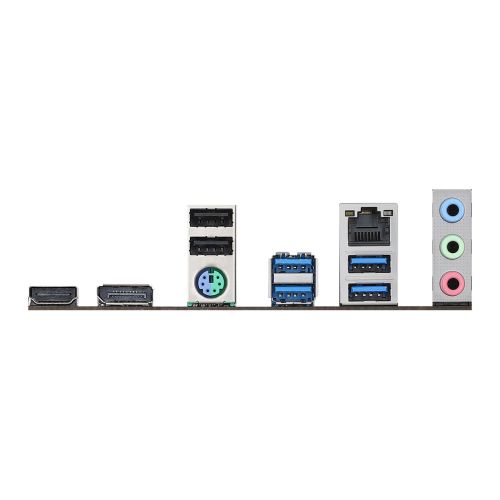

Back I/O Panel	1 x PS/2 Mouse/Keyboard 1 x HDMI 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN Port with LED
Internal I/O Panel	1 x SPI TPM 1 x Power LED and Speaker 2 x RGB LED 2 x Addressable LED 1 x CPU Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 2 x USB 2.0
Accessories	2 x SATA Data Cables, 2 x Screws for M.2 Sockets
Windows 11 Ready	Yes
Other Information	-

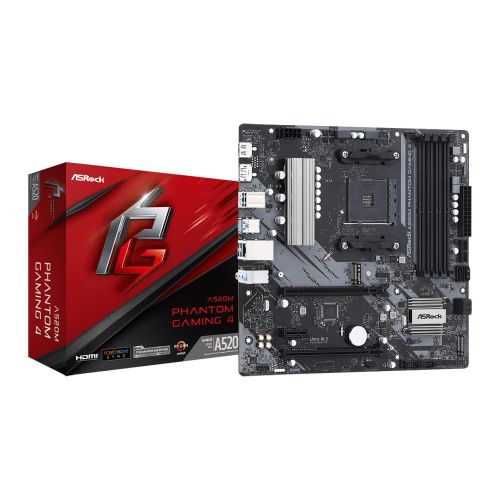

Package Type	Retail
Weight & Dimensions	-
Package Weight	0.79
Warranty	2 Year Replacement Warranty
