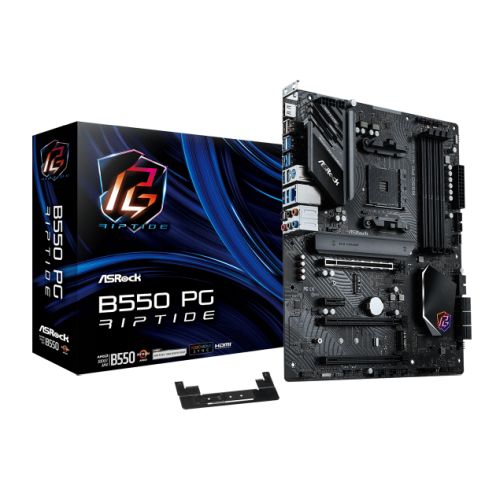

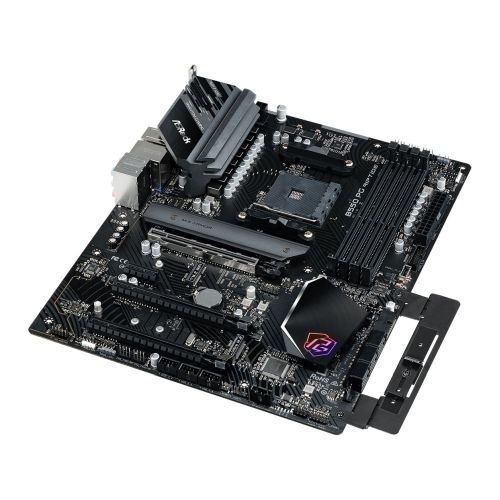

Asrock B550 PHANTOM GAMING RIPTIDE - Alpha Components

Asrock B550 PHANTOM GAMING RIPTIDE, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, 2.5GB LAN, RGB, 2x M.2

Asrock B550 PHANTOM GAMING RIPTIDE, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, 2.5GB LAN, RGB, 2x M.2

In Stock

Stock Code:
  AL-C-MB-ASROCK-B550-PGRIPTIDE

Mfr:
  AsRock

Mfr Code:
  B550 PG RIPTIDE

Mfr Link:
   AsRock
EAN:
  4710483935190

Quick Find:
  8011
£105.00
  • Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

  • Processors - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • Graphics - HDMI
  • Memory - Supports DDR4 4933+ (OC)*
  • Storage - 1 M.2 Key-E for WiFi
  • LAN - Killer E3100G 2.5G LAN

  • Premium 60A Power Choke Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

  • Killer™ Ethernet E3100 The Killer E3100 2.5 Gbps Ethernet controller is designed specically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

  • AMD Smart Access Memory Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

  • PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

  • Lightning Gaming Ports Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!


Product Description Asrock B550 PHANTOM GAMING RIPTIDE, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, 2.5GB LAN, RGB, 2x M.2
Motherboard Type Desktop
Form Factor ATX
Socket AMD AM4
Chipset AMD B550
CPU Support See AMD website
RAM Technology DDR4 (Dual Channel)
RAM Slots 4 x Dimm
RAM Speed Up to 4933+(OC)
Max RAM 128GB
Graphics Integrated Graphics Processor*Graphics specifications may vary between CPU types
Graphics Ports 1 x HDMI
Multi GPU Support Supports AMD Quad CrossFireX
PCI/PCI Express 3 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
Storage 6 x SATA III, 1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe *PCIe mode not supported with Athlon CPUs,
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Wireless -
LAN 2.5GB LAN
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB ports Supported Rear: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 10 x USB 3.2 Gen1 Type-A (6 at back, 4 at mid-board)
8 x USB 2.0 (2 at back, 6 at mid-board), 1 x Front Panel Type-C USB 3.2 Gen2 Header

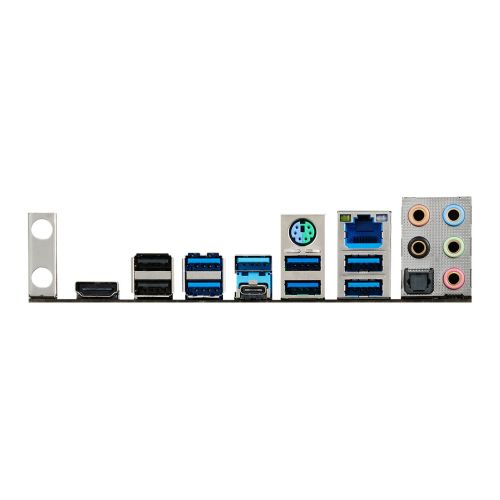

Back I/O Panel 1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard
1 x HDMI Port
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
Internal I/O Panel 1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
Accessories Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Graphics Card Holder, 3 x Screws for M.2 Sockets, 1 x Standoff for M.2 Socket
Windows 11 Ready Yes
Other Information 5th gen Ryzen CPUs will require a BIOS update to work
Package Type Retail
Weight & Dimensions -
Package Weight 1.95
Warranty 2 Year Replacement Warranty
