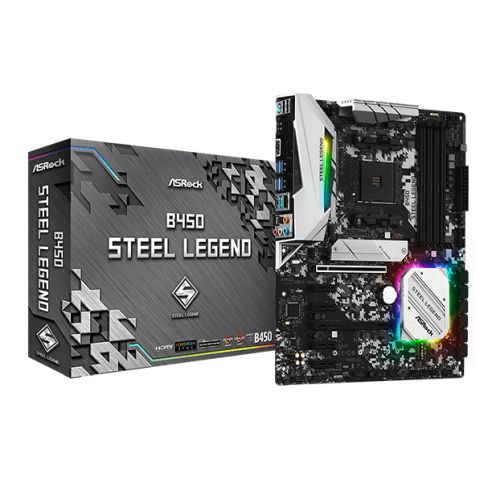

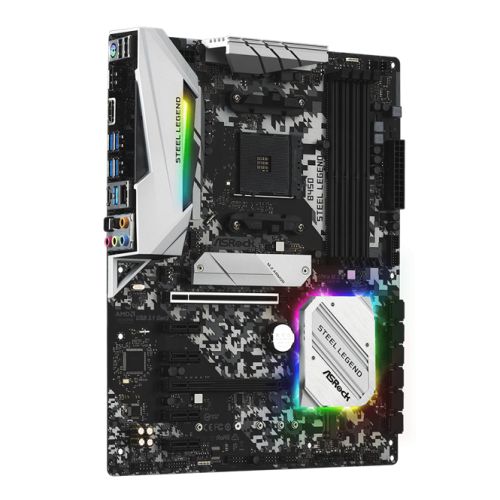

Asrock B450 STEEL LEGEND - Alpha Components

Asrock B450 STEEL LEGEND, AMD B450, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Rock-Solid Durability, RGB Lighting, M.2

Asrock B450 STEEL LEGEND, AMD B450, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Rock-Solid Durability, RGB Lighting, M.2

Out of Stock

Stock Code:
  AL-C-MB-ASROCK-B450STEELLEGEND

Mfr:
  AsRock

Mfr Code:
  B450 STEEL LEGEND

Mfr Link:
   AsRock
EAN:
  4717677338065

Quick Find:
  8012
£0
  • AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, 2.5G Intel LAN, Wi-Fi 6, 14 Dr. MOS power stages, USB 3.2 Gen 2 Type-C ports and Aura Sync RGB lighting

  • Processor #NAME?
  • Memory - Supports DDR4 3533+ (OC)
  • Graphics #NAME?
  • Audio - 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
  • LAN - Realtek Gigabit LAN
  • PCI - 2 PCIe 3.0 x16, 4 PCIe 2.0 x1

  • Tough as Steel. True Legend. Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. A motherboard that fulfills every task - with style!

  • Rule Your Own Lighting Way - Polychrome RGB Steel legend motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

  • Dual M.2 For SSD Two of the world’s fastest M.2 slots. One delivers up to PCIe Gen3 x4 32Gb/s transfer speed, the other one supports SATA3 6Gb/s mode.

  • M.2 Armors Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution on B365 platform that makes SSDs to run in a certain low temperature.

  • Dual USB 3.1 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

  • Antistatic Shield Protect mouse/keyboard against static electricity, especially lowering the chances of USB mouse lag or stuttering.

Product Description Asrock B450 STEEL LEGEND, AMD B450, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Rock-Solid Durability, RGB Lighting, M.2
Motherboard Type Desktop
Form Factor ATX
Socket AMD AM4
Chipset AMD B450
CPU Support See AMD website
RAM Technology DDR4 (Dual Channel)
RAM Slots 4 x Dimm
RAM Speed 3533+(OC) / 3466+(OC) / 3200(OC) / 2933(OC) / 2667 / 2400 / 2133 MHz
Max RAM 64GB
Graphics Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Graphics Ports 1 x HDMI, 1 x DisplayPort x2
Multi GPU Support Supports AMD Quad CrossFireX
PCI/PCI Express 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
Storage 6 x SATA III, 1 x Ultra M.2 (2230/2242/2260/2280) - PCIe
1 x M.2 (2230/2242/2260/2280/22110) - SATA
RAID RAID 0, 1, 10
Wireless -
LAN GB L:AN
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
USB ports Supported 2 x USB 3.1 Gen2 (Type A & C at back), 6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
Back I/O Panel 1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.2
1 x RJ-45 LAN
HD Audio Jacks
1 x ASUS Wi-Fi Module
Internal I/O Panel 1 x COM Port
1 x TPM
1 x Power LED and Speaker
1 x RGB LED
1 x Addressable LED
1 x AMD Fan LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
Accessories Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 2 x Screws for M.2 Sockets, 1 x Standoff for M.2 Socket
Windows 11 Ready Yes
Other Information For 3rd & 5th gen Ryzen CPUs only** Ryzen 5600G & 5700G CPUs may require a BIOS update **
Package Type Retail
Weight & Dimensions -
Package Weight 1.8
Warranty 3 Year Replacement Warranty

No PDF's available for this product.
